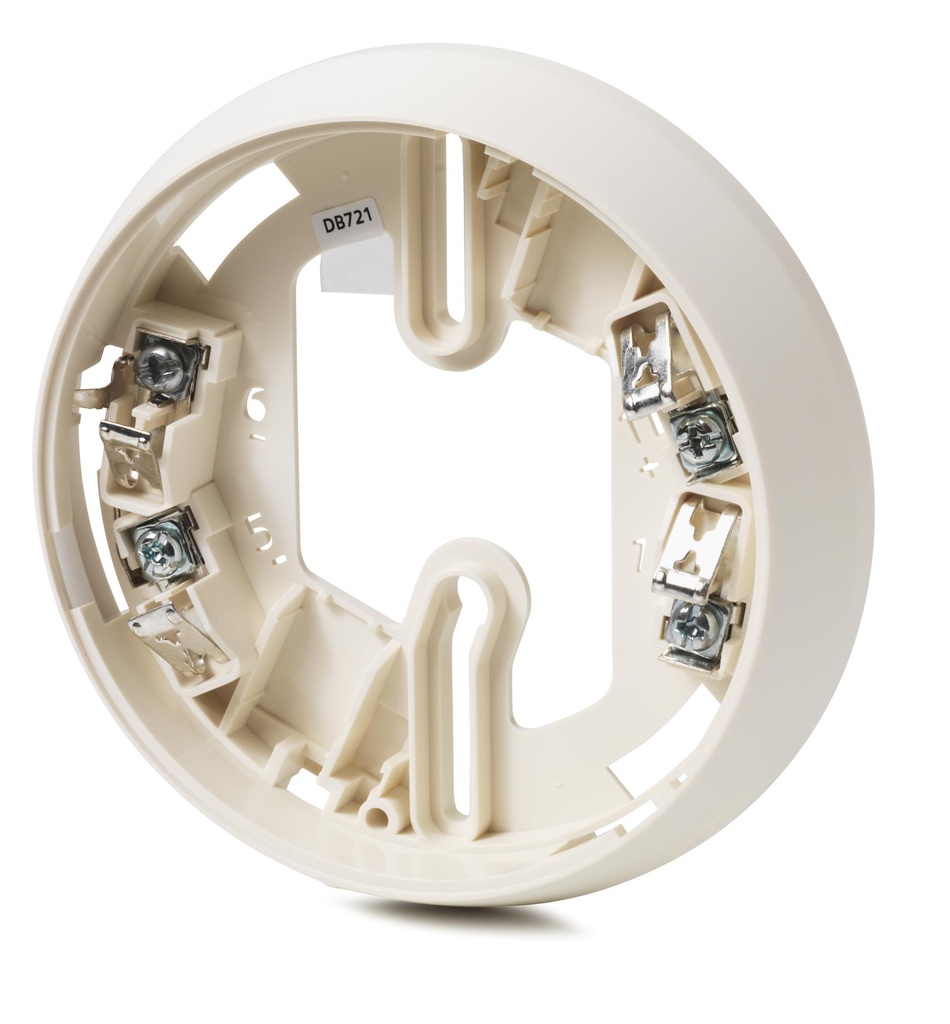

DB721 Detector base with loop contact

Universal base with extra large mounting slots facilitates use with a wide variety of back boxes and other electrical accessories. Connecting terminals for cable diameter at 1.6 mm2. Place for auxiliary terminals 2x DBZ1190-AA and 2x DBZ1190-AB. For all point detectors in the series Cerberus PRO FD720. Back entry for recess supply wiring. 2 breakouts on the side for surface wiring of cables up to 8 mm in diameter. By using the detector base with loop contact (DB721) the detector line is not interrupted even if no point detector is mounted.
